Polyester conveyor belts,also called EP conveyor belts,which tension resistant body is canvas woven by polyester in warp and nylon in weft.The belts have characteristic of low elongation in warp and good troughability in weft,good water resistance,good wet strength,no mould,high initial modulus of polyester,can choose a relative low safety factor,so it’s suitable for medium、long distance and heavy-load transportation of materials。

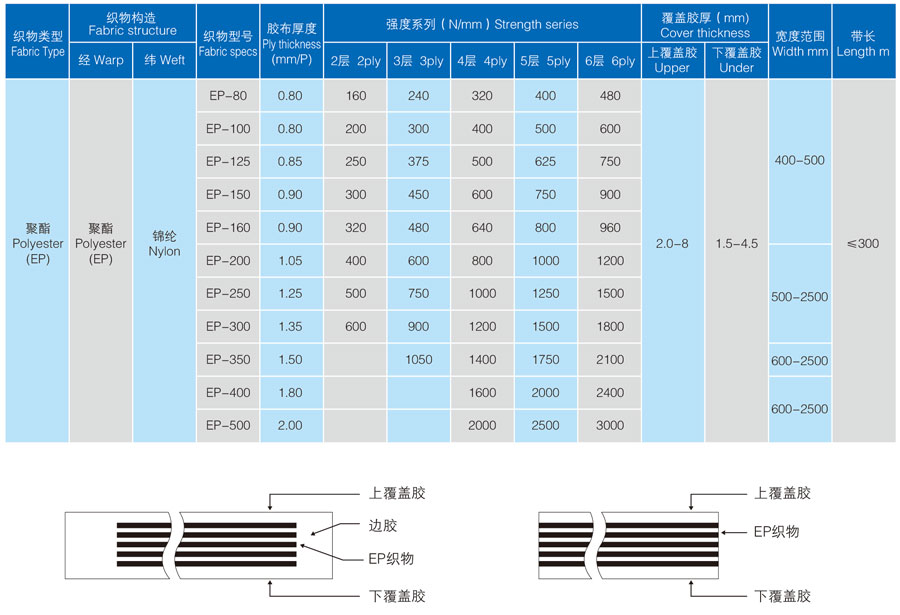

Specification and technical data of multi-layer fabric core polyester conveyor belt.

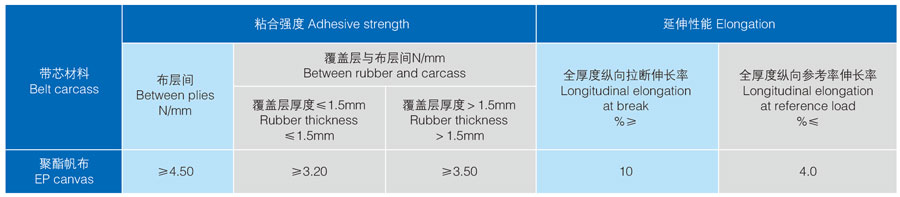

Adhesion and elongation of the belt

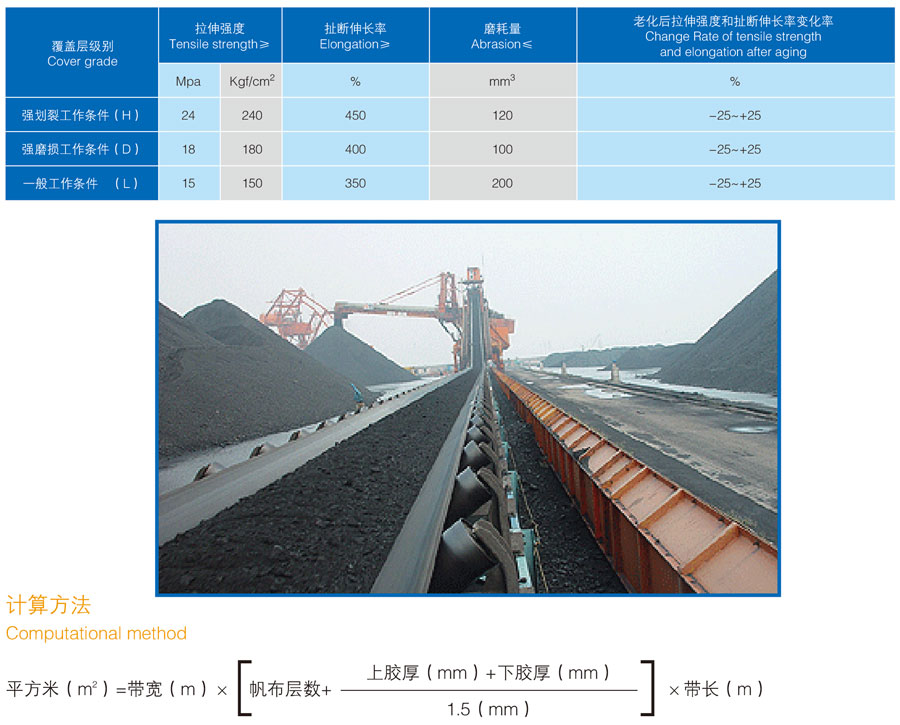

Cover properties of the belts
