Products Category
1.Non pressed PVC type
Dipping with PVC cover on the solid carcass to form the belt.
2.PVC type
Based on the non pressed  PVC type,the carcass is covered with top and bottom covers composed mainly of rubber,the belt is then formed after being pressed.
Contruction features and applications
1.The belt has good flame resistant and anti-static properties,it can fully satisfy the requirements of MT-914 and is especially suitable for materials conveyoring at flammable underground coalmines.

2.The solid woven fabric uses high tensile strength and low elongation polyester long filament as warp,and uses high tensile and medium modulum nylon filament as  weft,which had high strength,low elongation,light in carcass,free of separation of plies,shock resistant,anti-tear and good in troughability.

3.Non pressed PVC type is suitable for applicatons in dry conditions at a slope angle of less than 16 degrees.PVG type is suitable for applications at a slope angle of less than 20 degrees.

4.PVG type is covered with covers mainly composed of rubber,which further improves the troughability,resistant to wetness, slip and cold,elongation and wear-resistance.Thus,it can not only enhance the slope angle of conveyoring and also elongate life of belt.

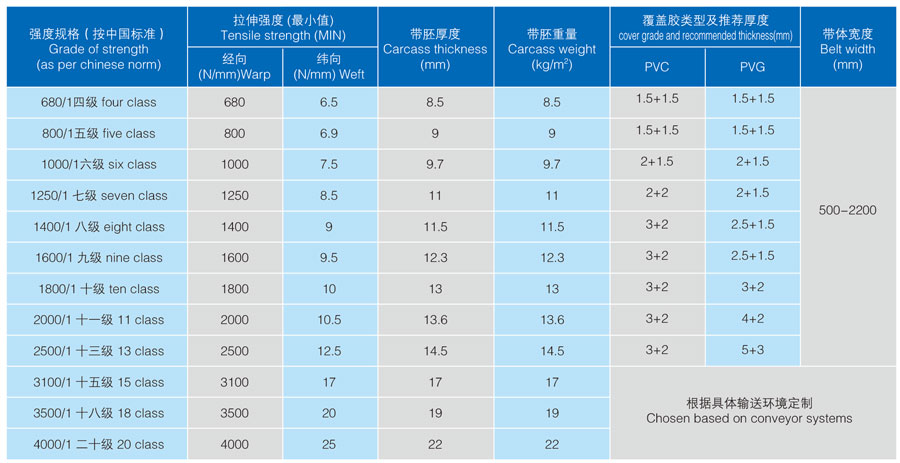

Technical specifications for reference

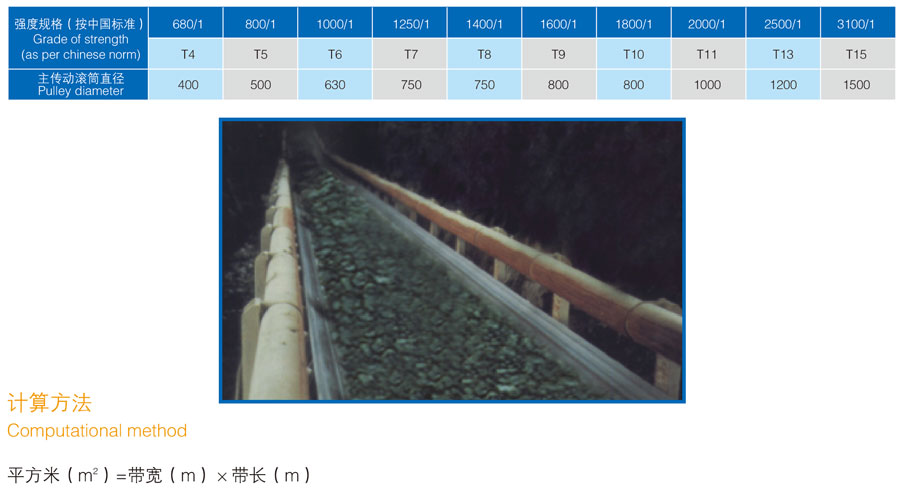

Recommended minimum pulley diameter
